Video Matrix Switcher presentation matrix switcher video matrix switcher 8x8
Introduction
Video Matrix Switcher presentation matrix switcher video matrix switcher 8x8 allow them to be an all-in-one solution
for a variety of different projects.They can be used in Restaurants & Sports Bars. Because they are Modular HDMI Matrix
Switchers they allow any input to be routed to any output, or the same input to be routed to all outputs, or any combination.
Our HDMI Modular Matrix Switchers can be controlled by remote control, front panel buttons or color display,
an RS232 port, Windows software & optional Crestron & Control4 Drivers.
Features
1. Interface bandwidth 2.25Gbps (total bandwidth 6.75Gbps), supporting the highest resolution:
2. HDPC:1920x1200P@60_24bit;HDTV1920x1080P@60_36bit；
3. Support for the hdcp1.3 revision, providing outstanding security and digital content protection;
4. Support fast switching operation; support infrared remote control;
5. The input and output boards support the card function and can be hot-swapped on-site;
6.Video Matrix Switcher presentation matrix switcher video matrix switcher 8x8
Specification
| Video-Input |
| Interfaces | 8 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5 m |
| Video Output |
| Interfaces | 8 x HDMI Type A Female (Black) |
| Max. Distance | 15 m |
| Impedance | 100 Ω |
| Video |
| Max. Pixel Clock | 340 MHz |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Compliance | HDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC) |
| Max. Distance | Up to 15 m |
| |
Video Matrix Switcher presentation matrix switcher video matrix switcher 8x8
Product Tags:
|
|

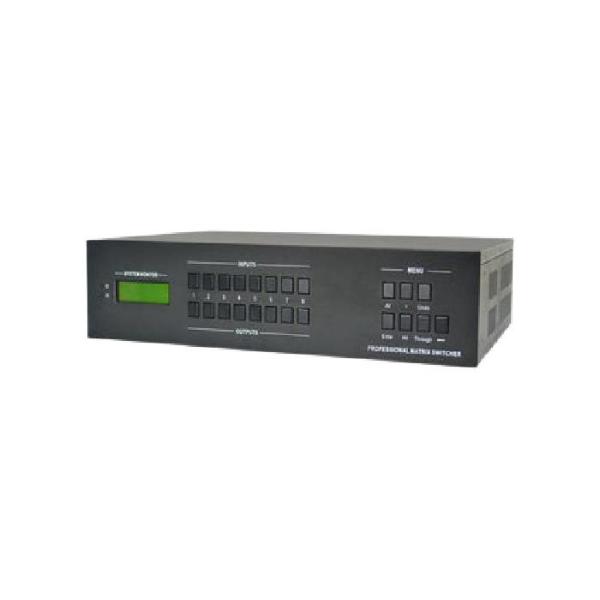

Video Matrix Switcher presentation matrix switcher video matrix switcher 8x8 Images
|
